A pressure gauge syphon is a device used to protect pressure gauges against the effect of high-temperature environments as well as reducing the effect of pressure surges that could potentially damage the function of a pressure gauge.
Due to the temperature difference between the process line and pressure gauge syphon, hot media, such as steam, is cooled rapidly causing condensation to form and collect within the syphon. This condensation acts as a buffer between the hot media and pressure gauge, preventing the hot vapor coming into direct contact with the gauge.
High temperatures within a gauge has the potential to cause damage to the gauge or create inaccurate readings.
When the syphon is first installed, it should be filled with a suitable material to separate the process line and the pressure gauge. This material will then act as a dampener in the event of a pressure surge by reducing pressure fluctuations entering the gauge and improving the stability of the gauge reading.

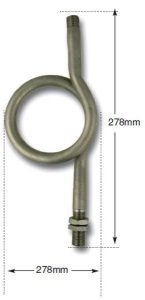

Ring syphon – A ring syphon is normally used for vertical installations.
U Syphon – A ‘U’ Syphon is normally used for horizontal installations.
Brannan offer a range of syphons, including mild steel, brass & stainless steel, in a variety of connection sizes.
Contact sales@brannan.co.uk for further details.
