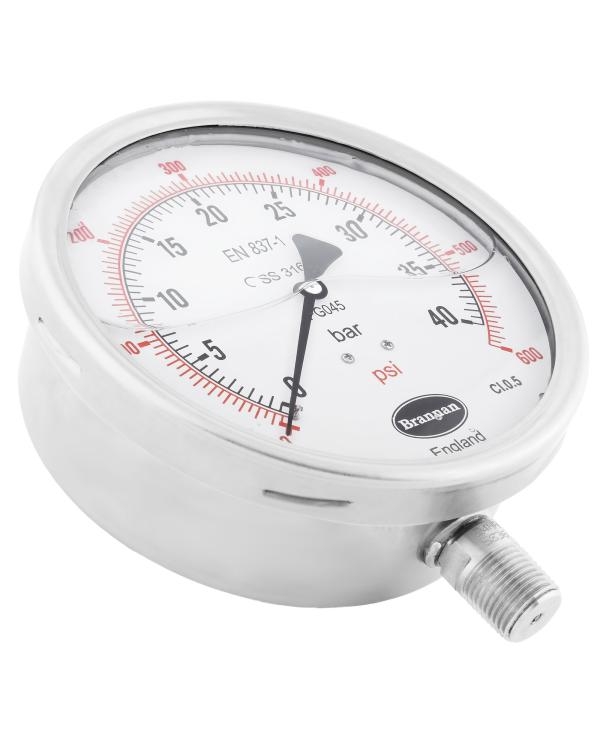

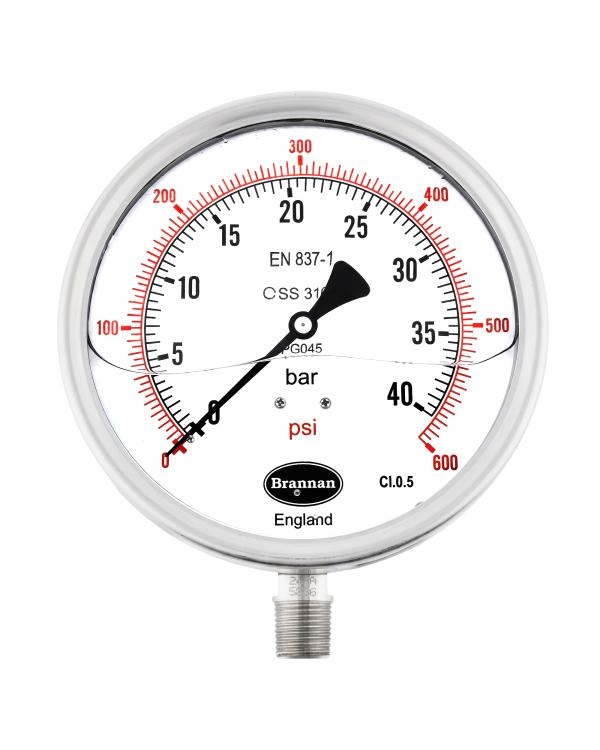

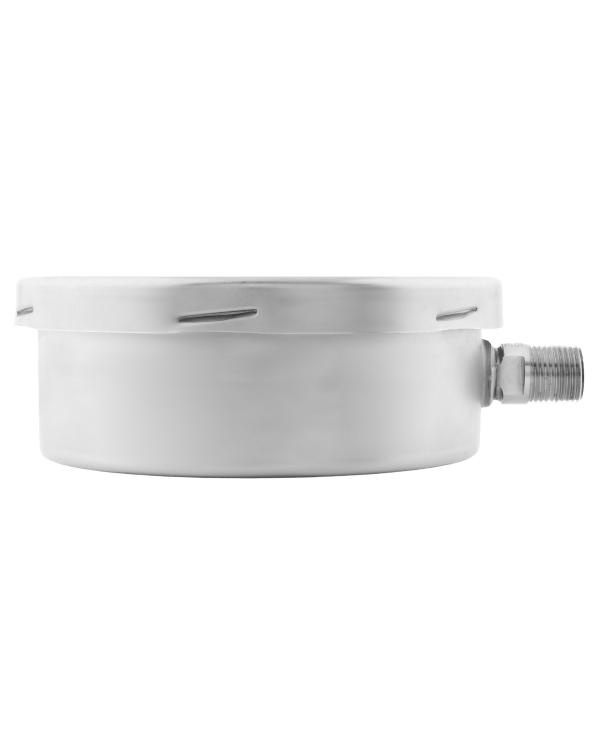

PG045 -Safety pattern stainless steel pressure gauge

Series: PG045

Designed to withstand the harshest of environments, this fully stainless steel, safety pattern gauge has a solid front baffle wall and blowout back and safety glass window. Available with a choice of pressure ranges, this pressure gauge can also be filled with silicone, glycerine of halocarbon depending on your application needs.

Buying for Business?

We manufacture, supply and deliver to businesses worldwide.

Contact Us
PG045 image #1 PG045 bottom entry #2 PG045 bottom entry #4 PG045 bottom entry #1 PG045 bottom entry #3

Product Features

Specifically designed for where operator safety is critical

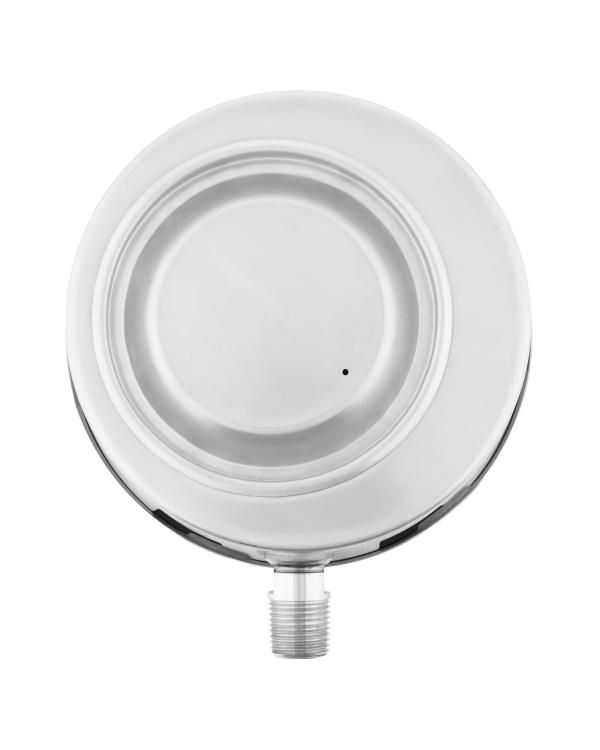

Stainless steel case with solid front baffle wall and blowout back
Suitable for corrosive pressure media
Case and socket welded - suitable for corrosive pressure media
Dry or fillable (glycerine, silicone, halocarbon)
Choice of pressure ranges and dial diameters

Specification

  • BS EN 837 / ASME B40.100
  • Accuracy class 1% (0.5% optional)
  • Stainless steel case and bezel
  • Stainless steel connection in a variety of thread options
  • Bourdon tube SS 316 measuring principle
  • Wide range of accessories and calibration options
  • See Product Data Sheet for full specifications
Download Product Data Sheet
Download Operational Guide
