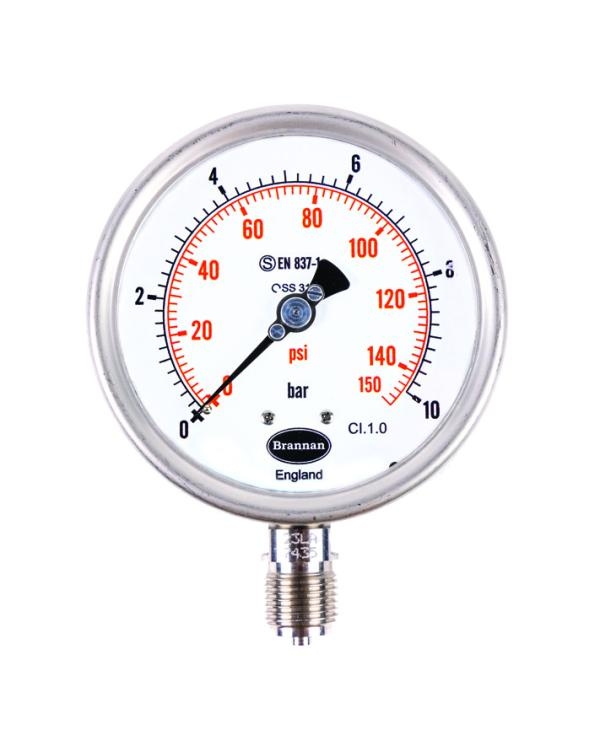

PG045 image #1

PG040 - Premium stainless steel fillable pressure gauge

Series: PG040

Designed to withstand the harshest of environments, this fully stainless steel pressure gauge has been manufactured to Class 1 standard with great attention to detail, ensuring reliability, accuracy, and robustness in corrosive environments. With a vibration and shock resistant mechanism, and a wide choice of pressure ranges available, this stainless steel pressure gauge can also be filled with silicone or glycerine depending on your application needs.

Buying for Business?

We manufacture, supply and deliver to businesses worldwide.

Contact Us

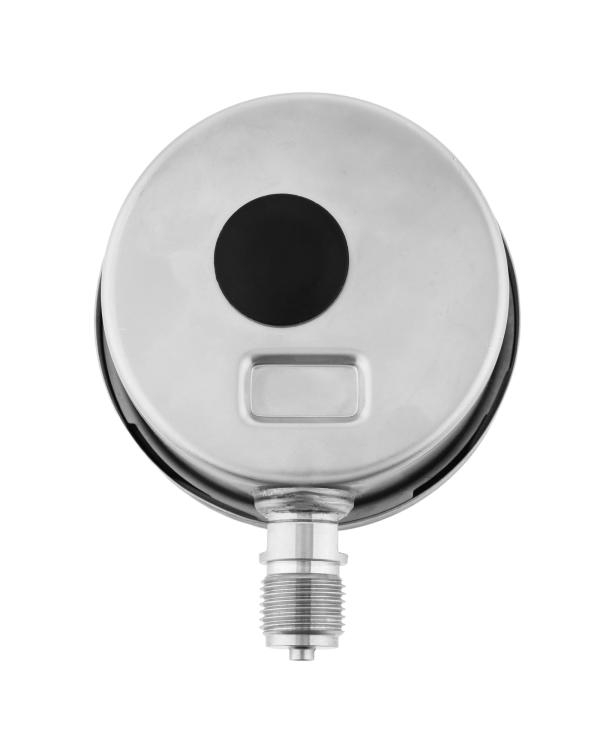

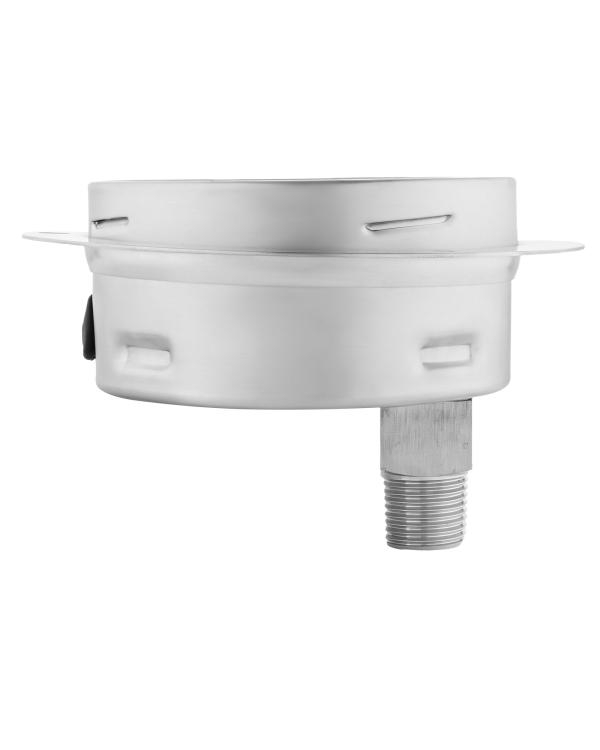

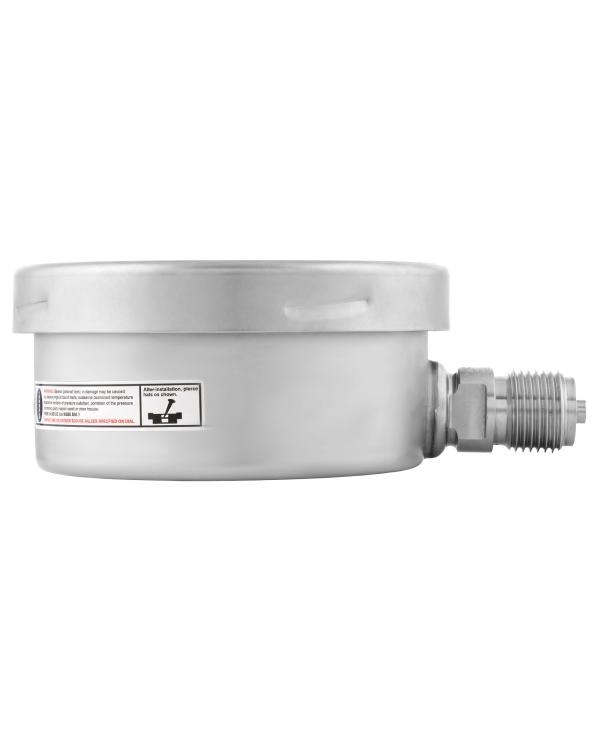

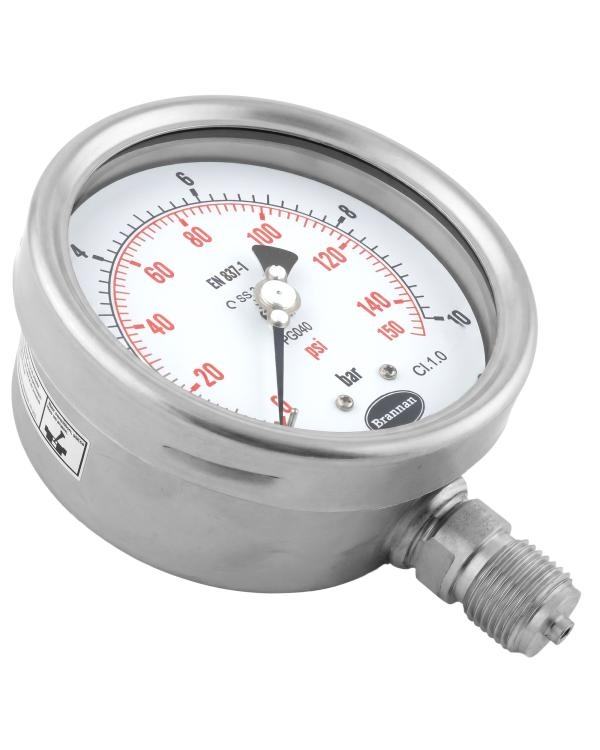

PG045 image #1 100mm PG040 bottom entry 37_894 #3 100mm PG040 bottom entry 37_894 #2 100mm PG040 bottom entry 37_894 #4 100mm PG040 back entry 78_998 #4

Product Features

Ideal for HVAC and high humidity or outdoor and corrosive environments
Stainless steel, laser welded case and internal parts for corrosive pressure media
Flow restrictor
Black aluminium micro adjustable pointer (excl. 63mm - standard pointer)
Silicone, glycerine or halocarbon filling available for protection against vibration
Front or back flange available for panel mounting
Wide choice of pressure ranges and dial diameters

Specification

  • BS EN 837 / ASME B40.100
  • Accuracy class 1.0% (except 63mm: 1.6%)
  • Stainless steel 304 case (316 on request)
  • Stainless steel 316L/Monel wetted parts with variety of thread options
  • Bourdon tube Cu-Allow measuring principle
  • Range of accessories and calibration options
  • See Product Data Sheet for full specifications
Download Product Data Sheet
Download Operational Guide
