PG010 - General purpose pressure gauge

Series: PG010

Perfect for general applications, this black steel case pressure gauge is part of Brannan’s range of commercial pressure gauges. Offered in a wide range of diameters and scales, our black steel case pressure gauge has an accuracy class of 1.6, and is suitable for dry, indoor installations. With multiple connection types available, this is a quality, reliable all-round pressure gauge, ideal for most standard applications.

Buying for Business?

We manufacture, supply and deliver to businesses worldwide.

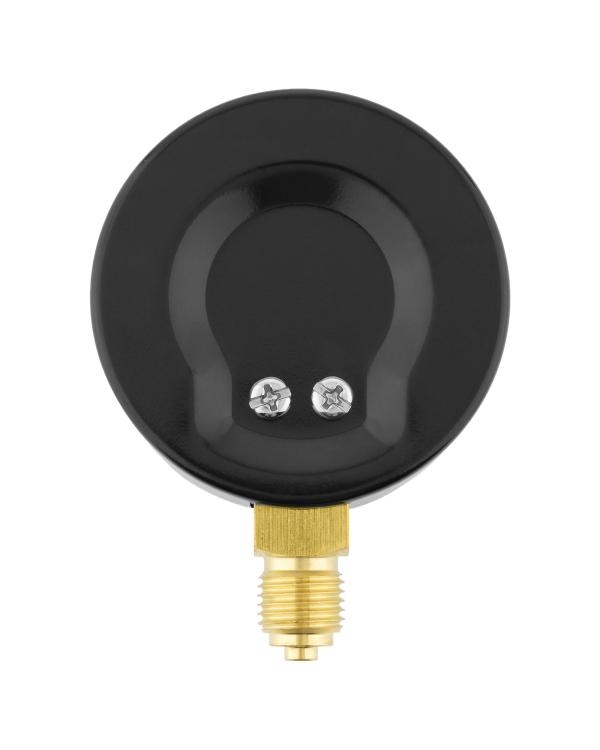

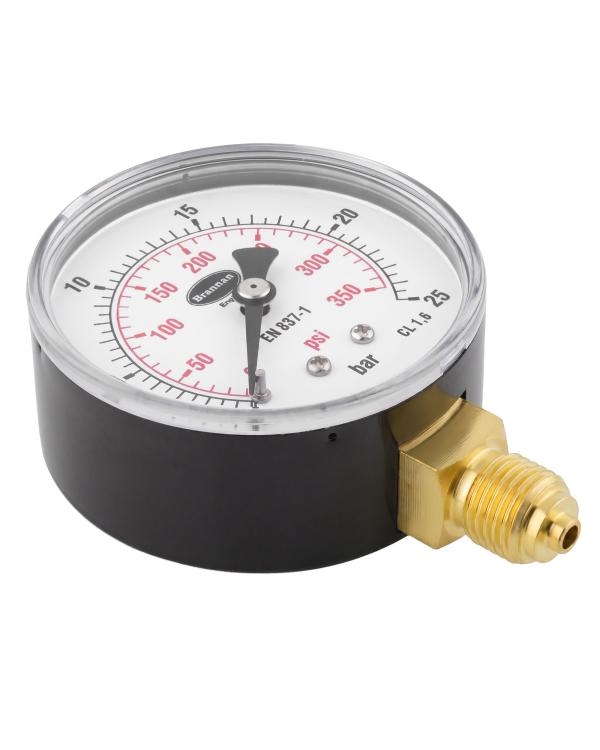

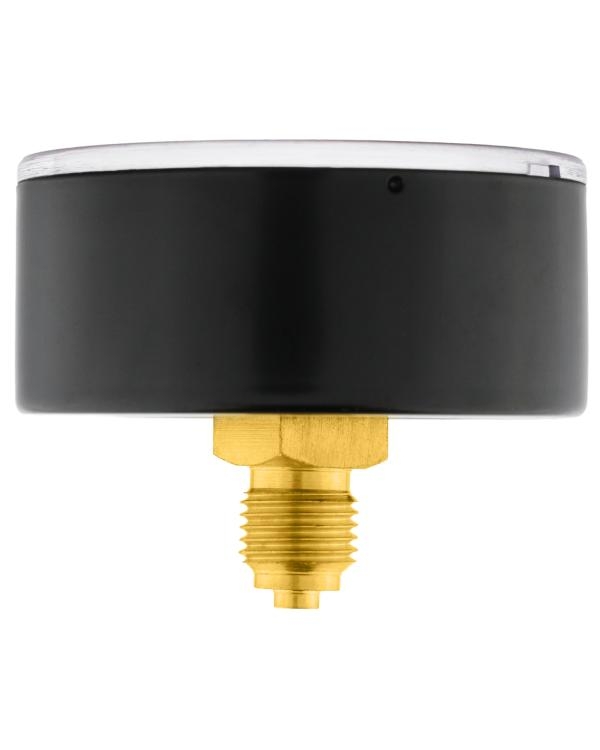

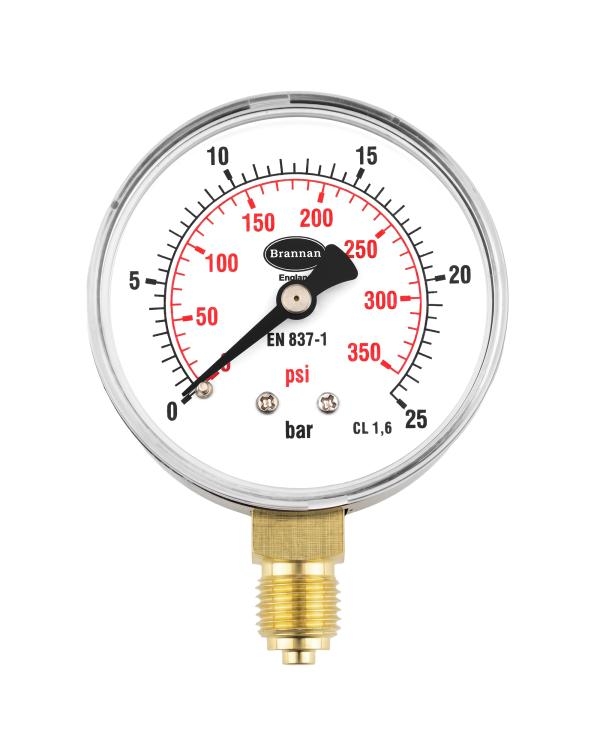

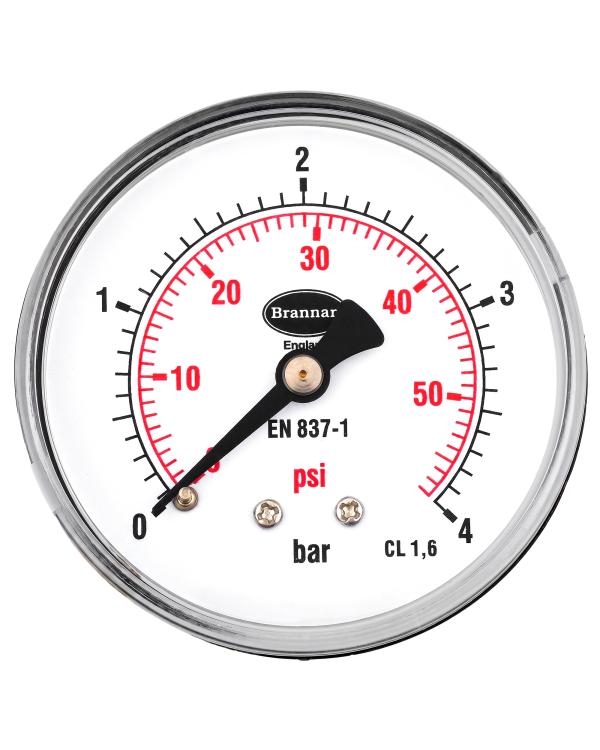

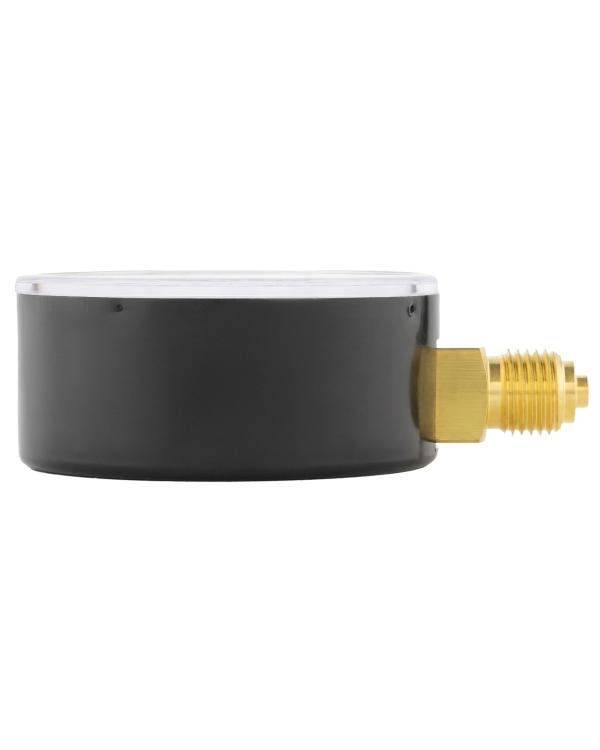

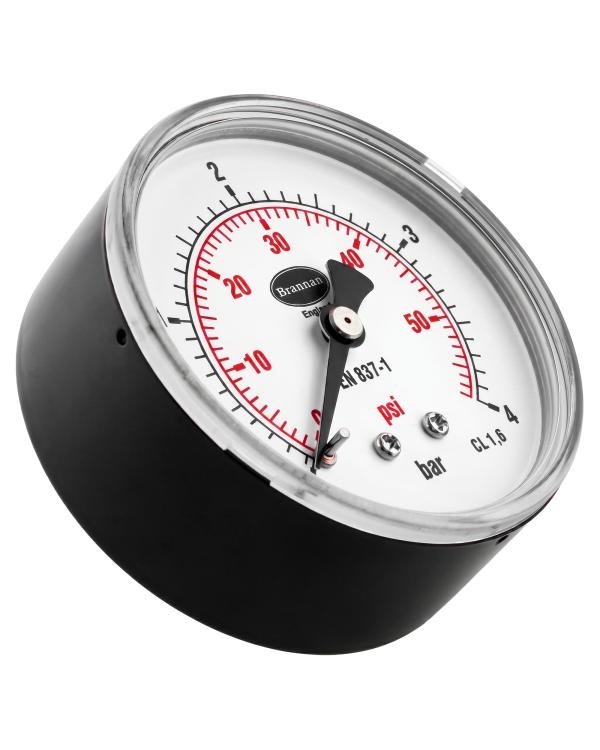

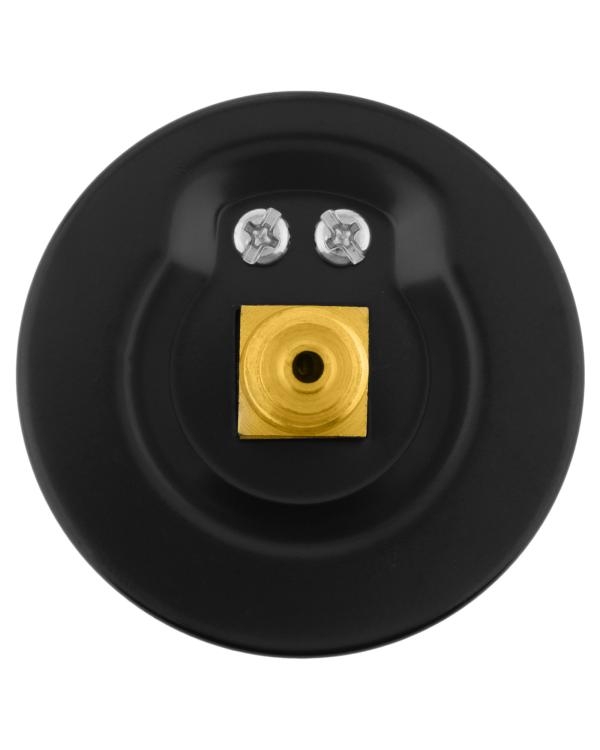

PG010 main image 63mm PG010   bottom entry 34_428 #3 63mm PG010   bottom entry 34_428 #2 63mm PG010   back entry   34_444 #1 63mm PG010   back entry   34_444 #3 63mm PG010   bottom entry 34_428 #4 63mm PG010   back entry   34_444 #2 63mm PG010   back entry   34_444 #4

Product Features

Ideal for HVAC and high humidity or outdoor installations
Black steel case with brass connection
For dry indoor installations
Wide choice of pressure ranges and dial diameters

Specification

  • BS EN 837 / ASME B40.100
  • Accuracy class 1.6% (except 40mm: 2.5%)
  • Black steel case
  • Brass connection in variety of thread options
  • Bourdon tube phosphor bronze measuring principle
  • Wide range of accessories and calibration options
  • See Product Data Sheet for full specifications
