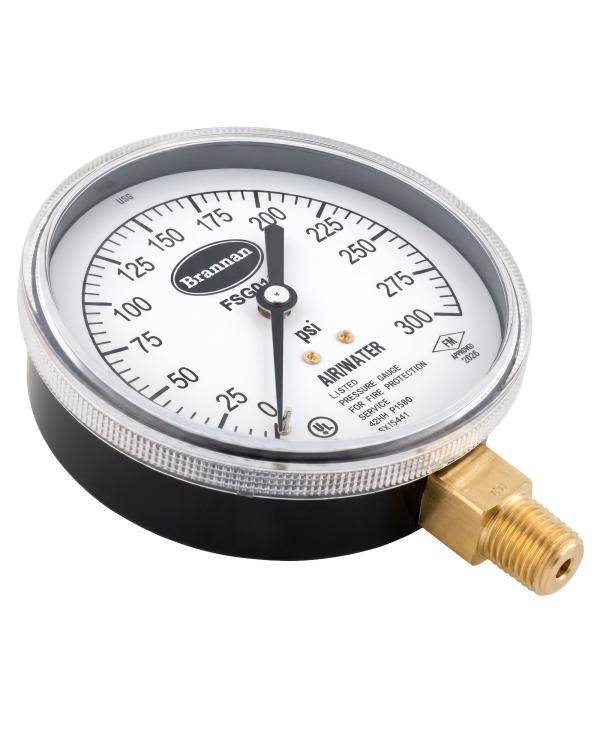

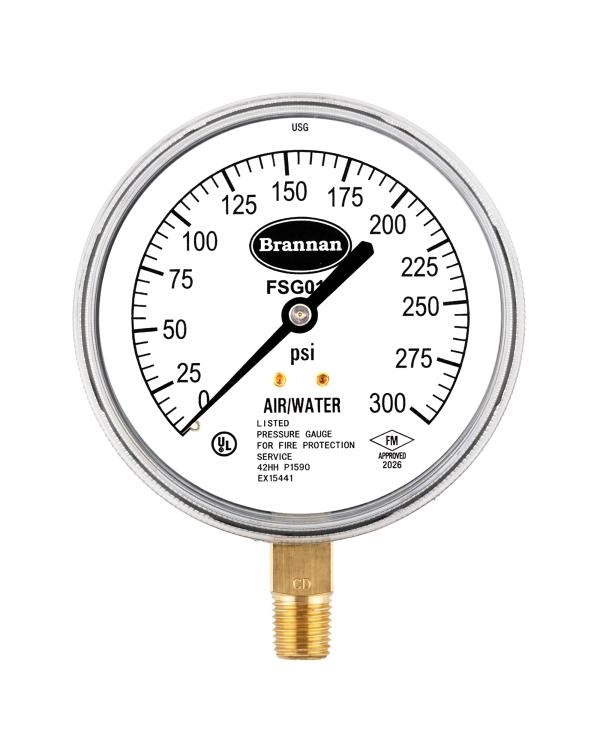

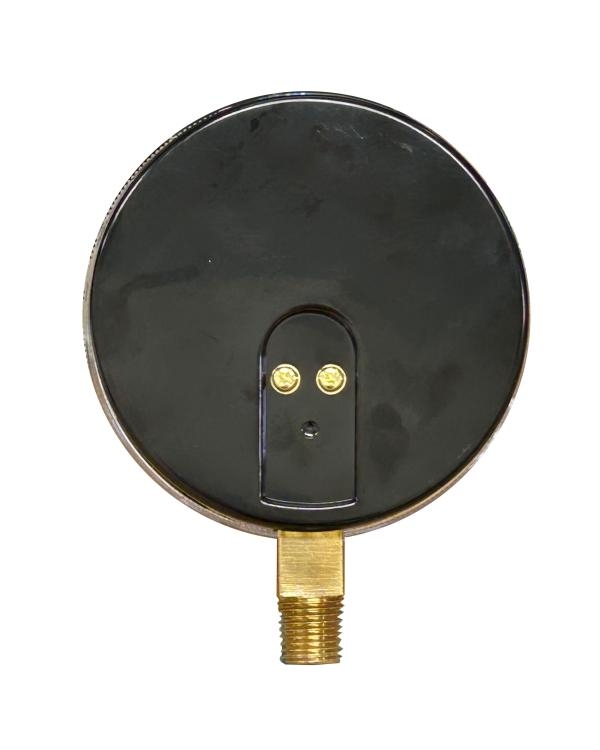

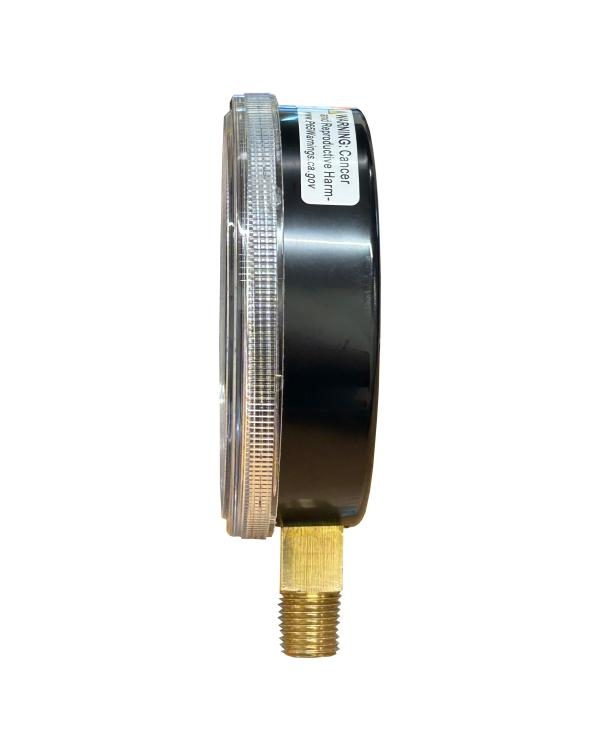

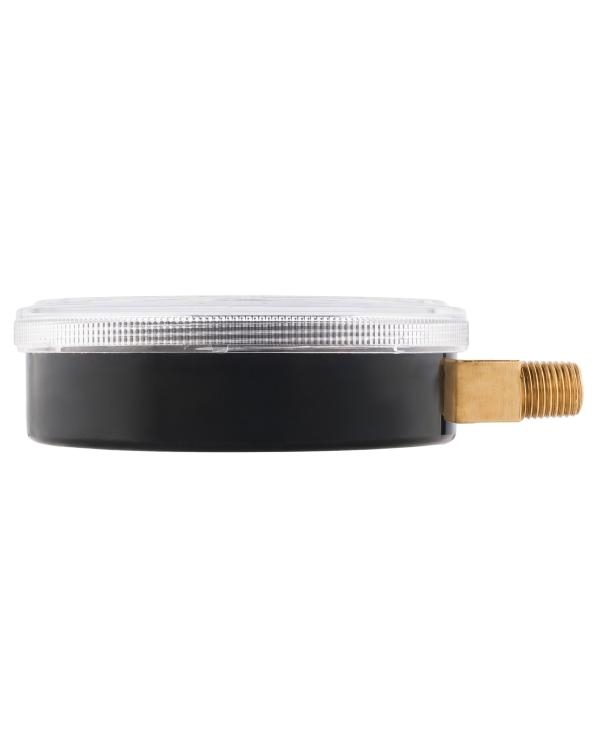

FSG010 - Fire sprinkler pressure gauge

Series: FSG010

Brannan fire sprinkler pressure gauge designed to provide a quick visual inspection of the water or air pressure within a fire sprinkler system, ensuring it is properly charged and ready to operate. These gauges allow inspectors to confirm that pressure levels are sufficient to control a fire and to identify issues like leaks or closed valves.

Buying for Business?

We manufacture, supply and deliver to businesses worldwide.

Product Features

Fore fire protection industry

Wet or dry sprinkler systems

0 to 80 psi retarded to 250 psi gauge is generally used on the sprinkler head side of the control valve to monitor air line pressure

The 0 to 300 psi gauge is generally used on the water supply side of the system to indicate available source pressure

ASME B40.100 compliant

Dual scale or single scale

Specification

ASME B40.100
Accuracy class ±3-2-3% (Grade B)
Black plastic resin case
Phosphor bronze measuring principle
See Product Data Sheet for full specifications

Download Product Data Sheet

Download Operational Guide

Download Installation Guide

5 years Guarantee

All our products are supplied with a 5 year guarantee (2 years for instruments including battery).
