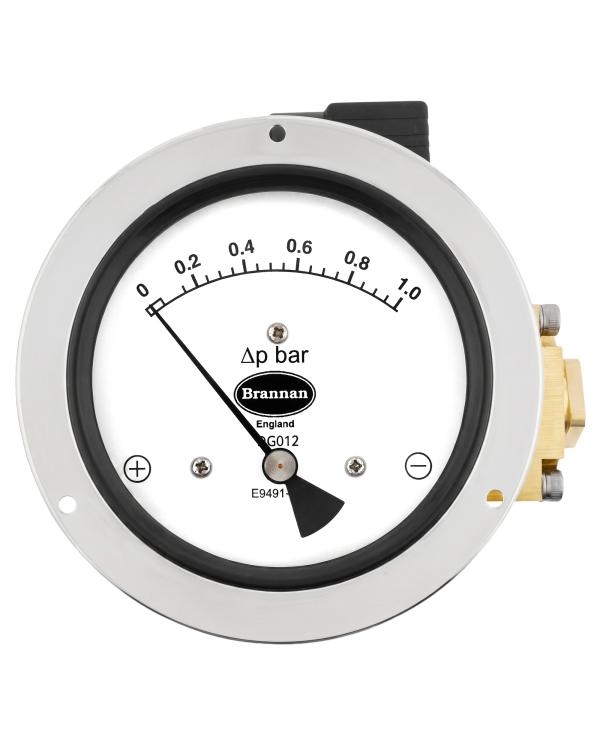

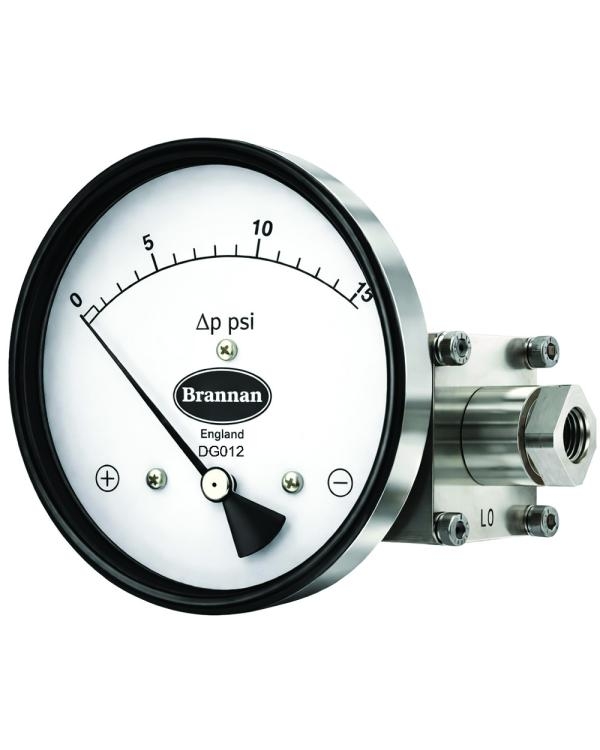

DG012 - Differential pressure gauge - convoluted diaphragm type

Series: DG012

Magnetic coupling with convoluted diaphragm used to measure differential pressure

Buying for Business?

We manufacture, supply and deliver to businesses worldwide.

Product Features

Ideal for applications where no migration of the media from high pressure side to low pressure side is permitted

Suitable for leak detection and filtration systems

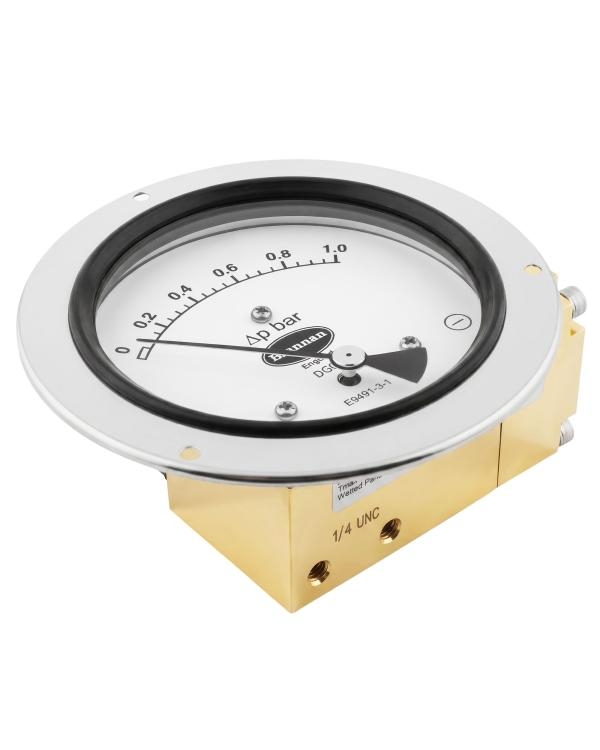

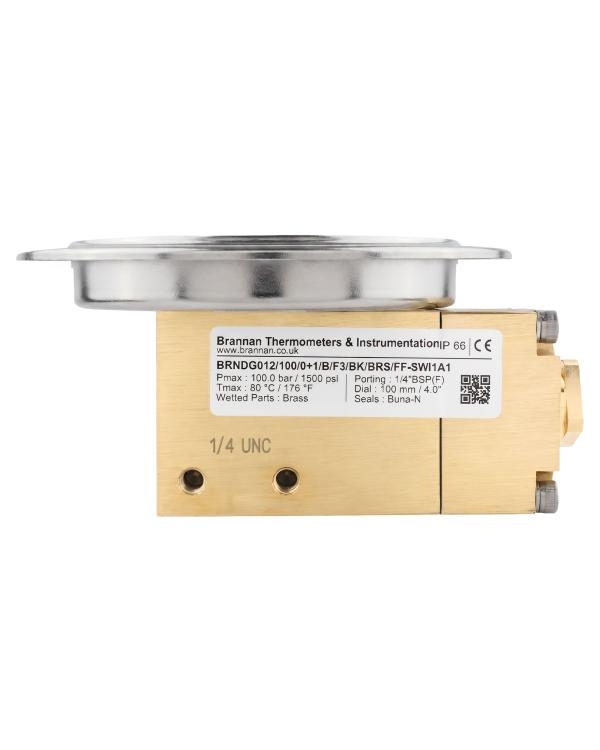

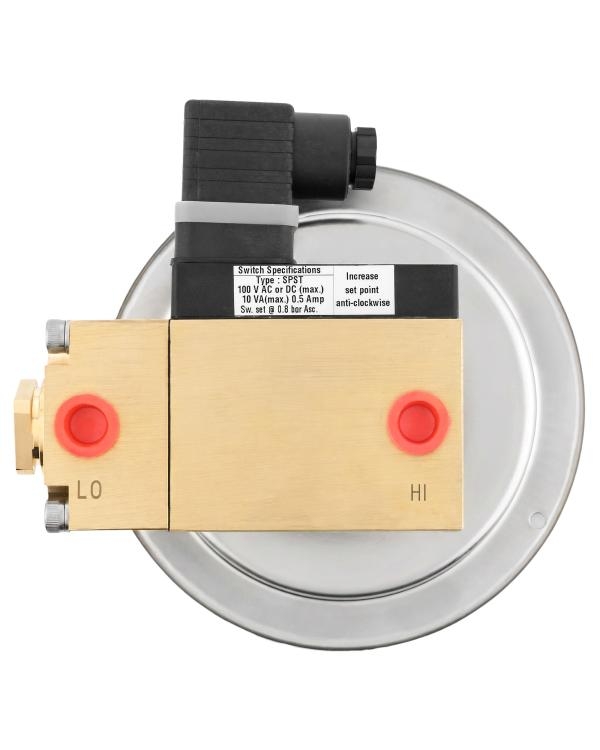

Bottom, back, or in-line connection

Wide choice of pressure ranges and dial diameters

Specification

Accuracy class 2% FS
Stainless steel case with rubber ring
Aluminium, brass, SS 316 or Monel body and dial
Magnetic coupling with convoluted diaphragm measuring principle
Calibration available
See Product Data Sheet for full specifications

Download Product Data Sheet

Download Operational Guide

Download Installation Guide

5 years Guarantee

All our products are supplied with a 5 year guarantee (2 years for instruments including battery).
