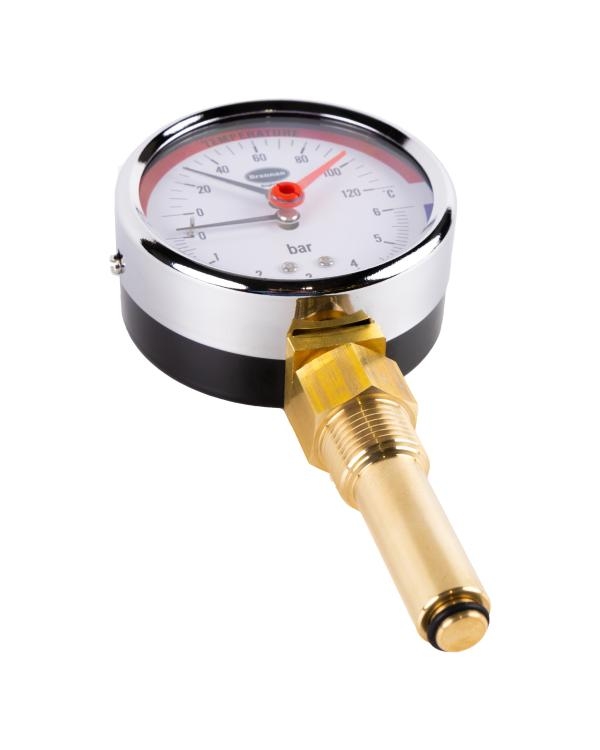

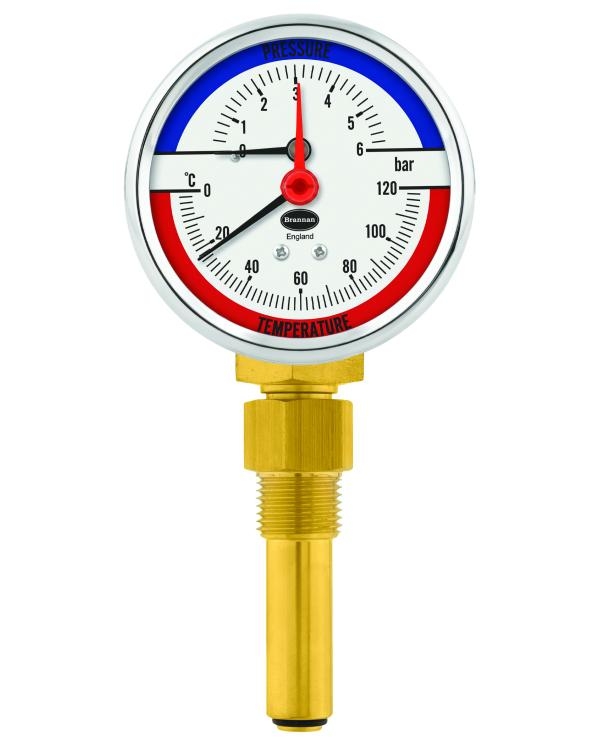

CG010 - Combined temperature and pressure gauge

Series: CG010

Manufactured with Brannan quality and accuracy, this combined temperature and pressure gauge allows you to measure both temperature and altitude/pressure in the same instrument. Easy to read, and supplied with a self-sealing brass pocket, this combined temperature and pressure gauge is a low cost solution for indoor installations.

Buying for Business?

We manufacture, supply and deliver to businesses worldwide.

Product Features

Low cost solution for temperature and pressure or temperature and altitude measurement

Black steel case with brass connection

Supplied with self-sealing brass pocket

For indoor installations

Specification

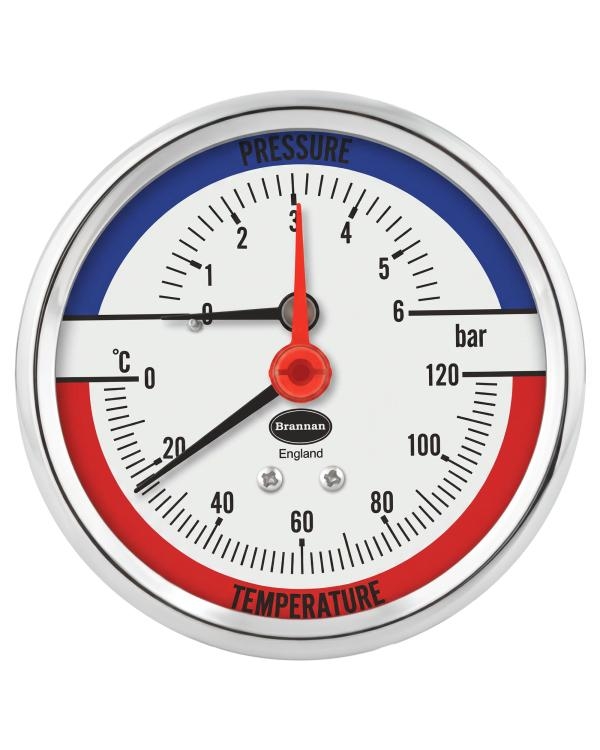

Dial diameter 80mm
Temp/pressure range: 0 to +120°C & 0 to 6 bar only
Temp/altitude range: 0 to 30 or 45 metres
Black steel case with snap fit chrome bezel

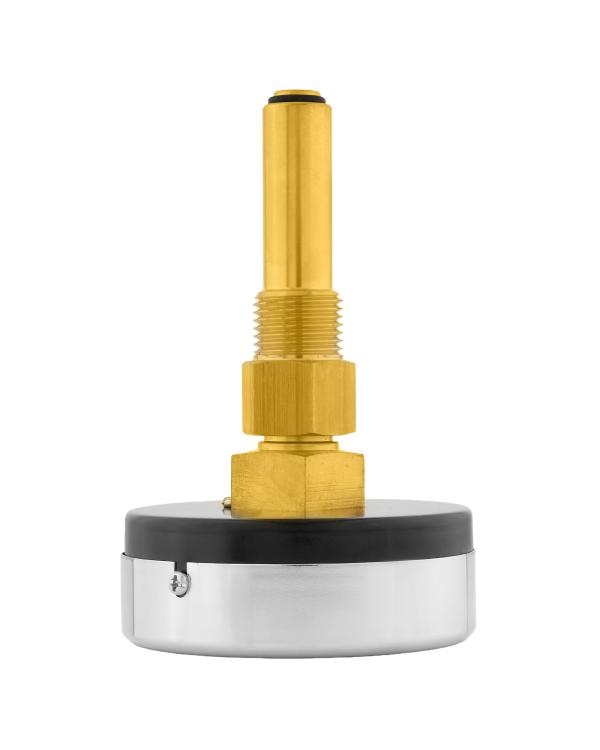

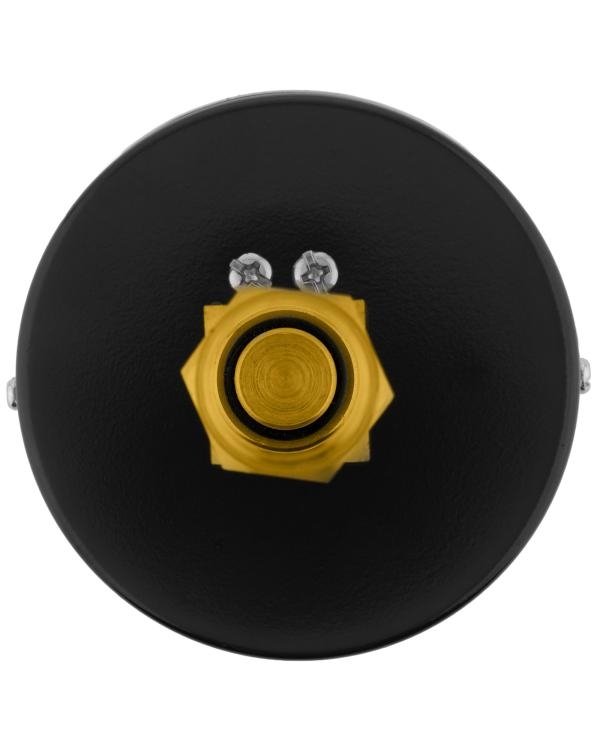

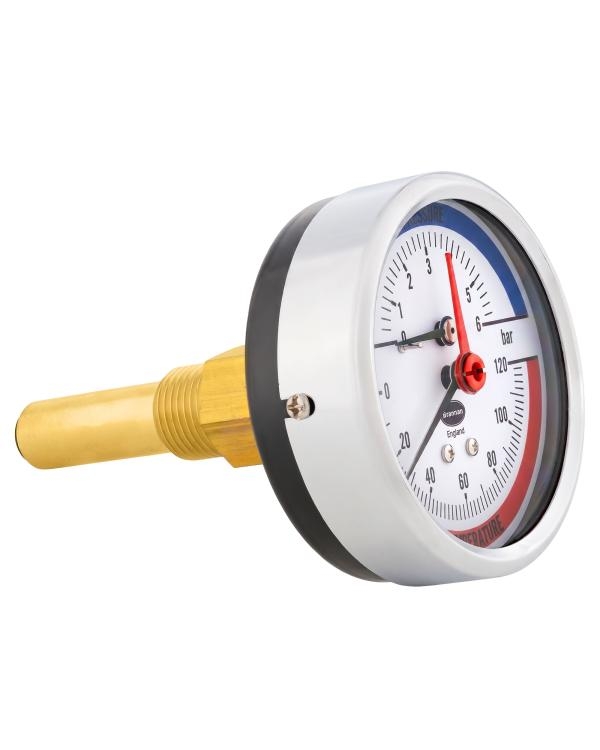

Connection 1/2” BSP bottom or back
Bourdon tube Cu-Alloy measuring principle
See Product Data Sheet for full specifications

Download Product Data Sheet

Download Operational Guide

Download Installation Guide

5 years Guarantee

All our products are supplied with a 5 year guarantee (2 years for instruments including battery).
See Terms & Conditions for full details.

International shipping

We offer global shipping options, either by air, sea or road.
Contact us for more details.
