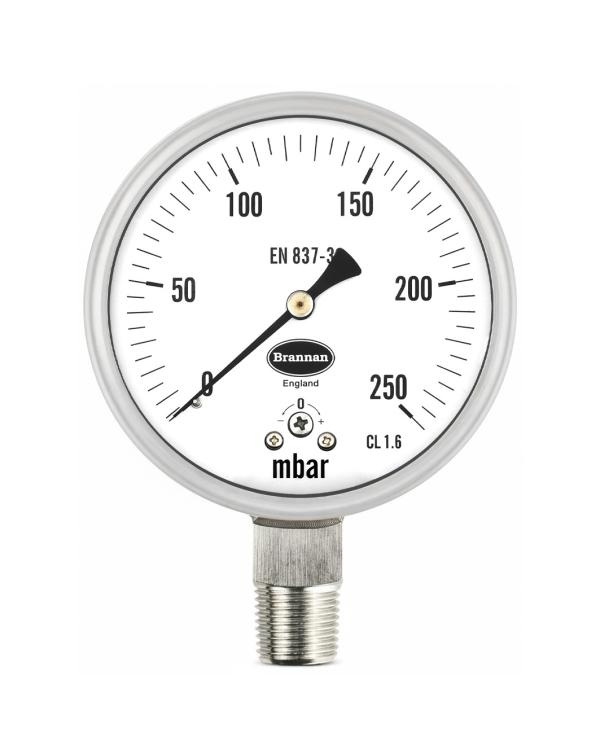

CAP001 - Capsule gauge

Series: CAP001

Perfect for low pressure measurements, this capsule gauge is part of Brannan’s range of commercial gauges. Available in black steel or stainless steel suitable for harsh and corrosive environments and pressure media, with stainless steel or brass wetted parts.

Buying for Business?

We manufacture, supply and deliver to businesses worldwide.

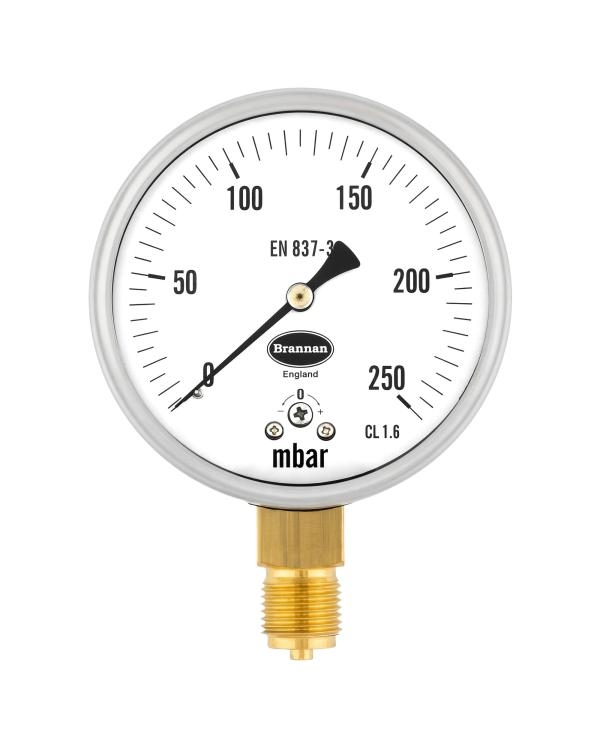

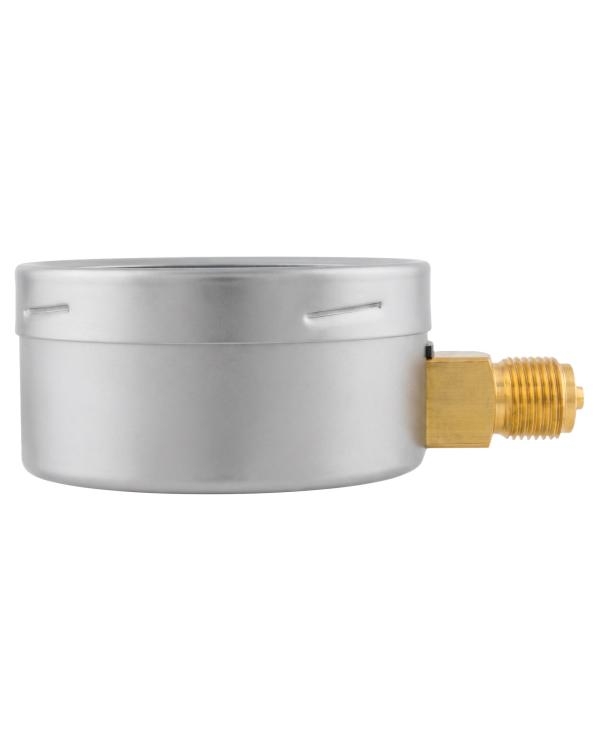

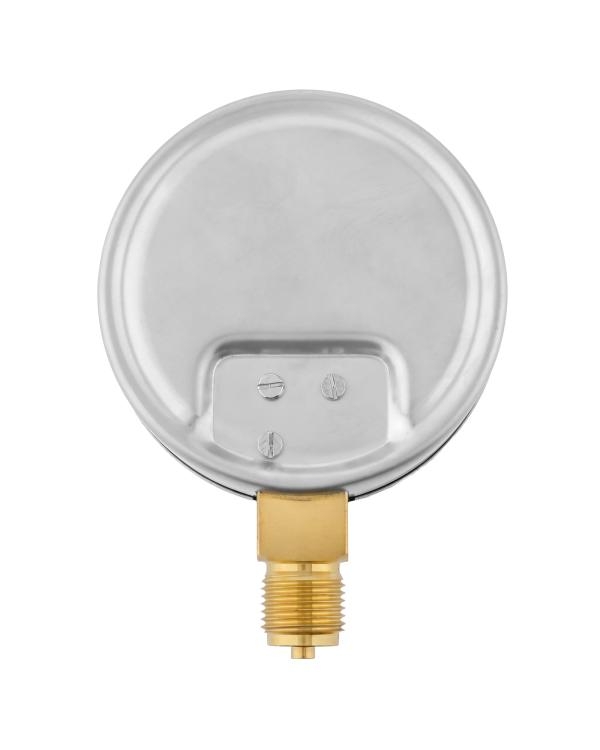

100mm CAP001 bottom entry brass connection

Product Features

Low pressure capsule gauge in brass or stainless steel case suitable for harsh and corrosive

Choice of brass or stainless steel case suitable for harsh and corrosive environments and pressure media

Front or back flange available for panel mounting

Wide choice of pressure ranges and dial diameters

Specification

EN 837 - 3
63mm: 2.5% / 100mm & 150mm: 1.6%
Stainless steel 304 case or black steel
Stainless steel 316 (lazer welded to case) or brass connection in variety of thread options
Capsule measuring principle, stainless steel 316 or brass
Wide range of accessories and calibration options
See Product Data Sheet for full specifications

Download Product Data Sheet

5 years Guarantee

All our products are supplied with a 5 year guarantee (2 years for instruments including battery).
