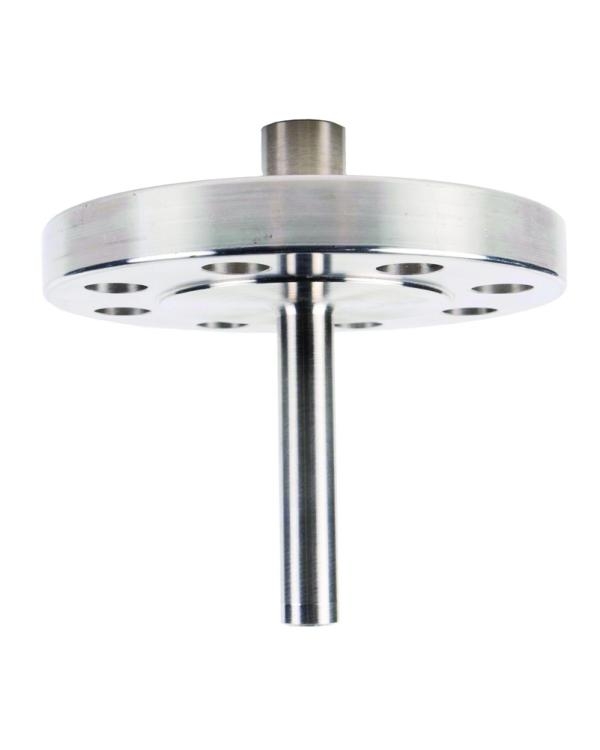

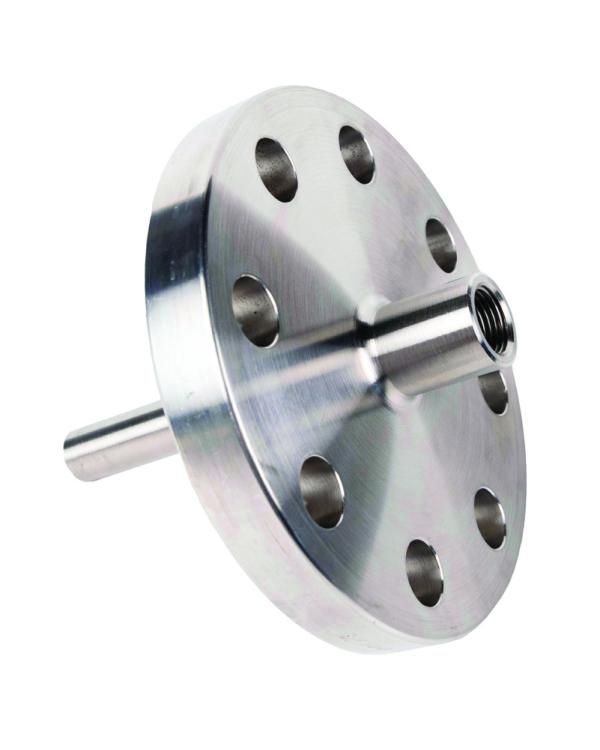

ATW041 - Flanged thermowell

Series: ATW041

Heavy duty, flanged thermowell manufactured from solid bar stock, provides isolation between the temperature instrument and the process media. This stainless steel thermowell allows the instrument to be removed without draining and is available in a wide range of materials for many different process applications. Suitable for dial thermometers.

Buying for Business?

We manufacture, supply and deliver to businesses worldwide.

Product Features

Suitable for oil and gas chemical and petrochemical, power generation and other process applications

Heavy duty design, flange welded to shank

Provides isolation between the temperature instrument and the process media

Allows the instrument to be removed without draining the system

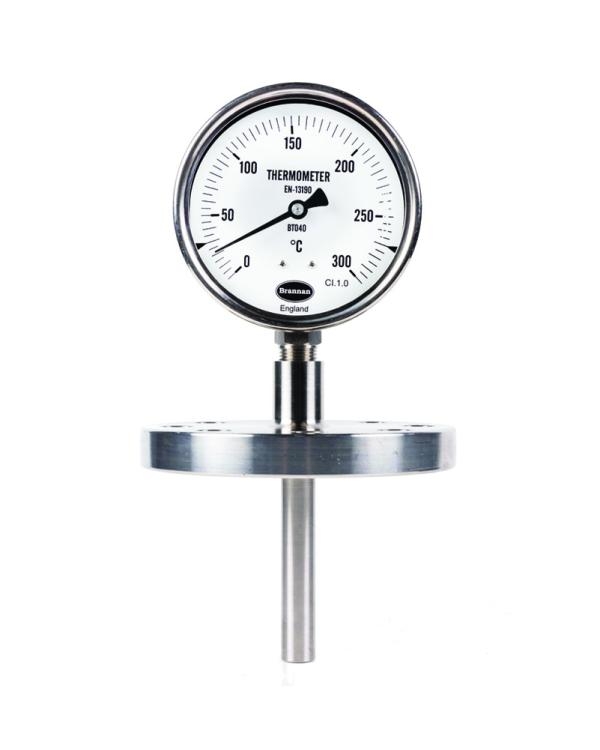

Suitable for dial thermometers

Specification

Straight, stepped or tapered - flange welded on solid bore shank
6.6mm, 10.5mm or 12.5mm internal bore diameter (others available on request)
Wide choice of materials
1/2" BSP or NPT female connection
Choice of process connections
Various pressure classes
See Product Data Sheet for full specifications

Download Product Data Sheet

Download Operational Guide
