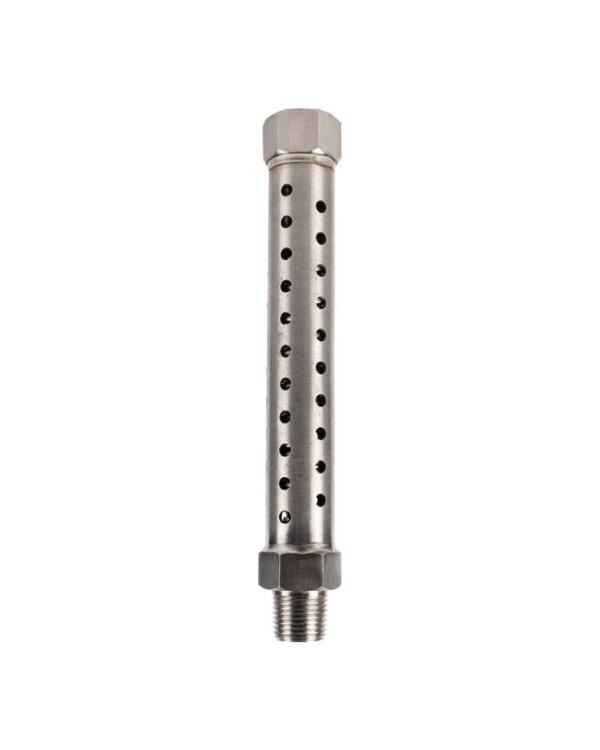

ACT001 - Cooling tower - perforated type

Series: ACT001

Protects pressure instrument from high process temperatures.

Buying for Business?

We manufacture, supply and deliver to businesses worldwide.

Product Features

Suitable for use in oil and gas, pneumatic and hydraulic and chemical and petrochemical applications

For use where the process media temperature is greater than the temperature rating of the instrument

Air circulation and heat radiation lowers the pressure media temperature

Specification

Choice of instrument and process connections
Stainless steel body material - 316 or 316L
Working pressure up to 100 bar
Flow path diameter 1.5mm - Suitable for fluids that do not have contamination or particles and viscosity less than 500 CST
See Product Data Sheet for full specifications

Download Product Data Sheet
