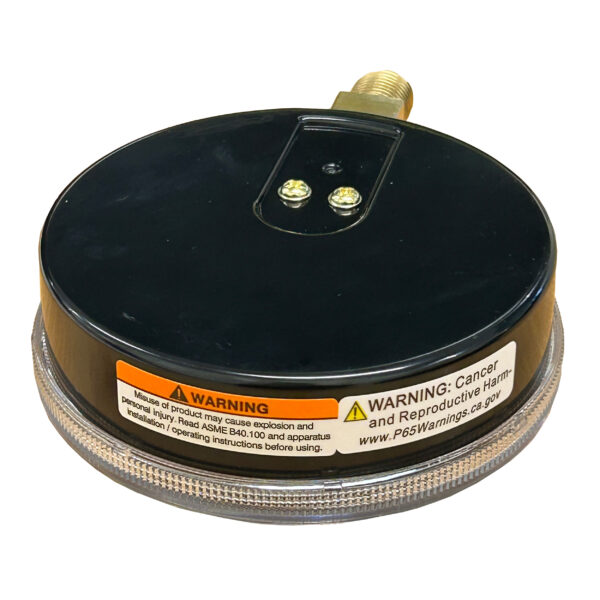

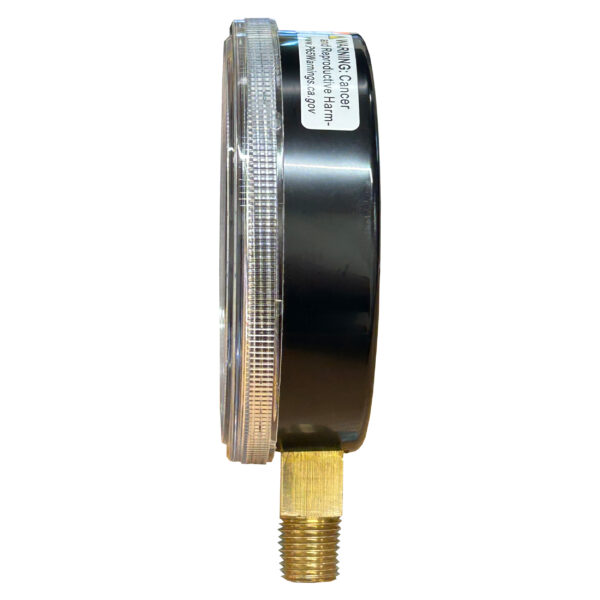

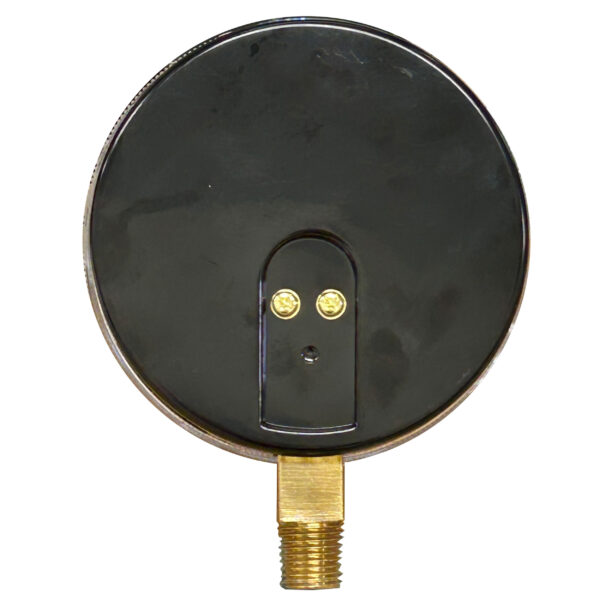

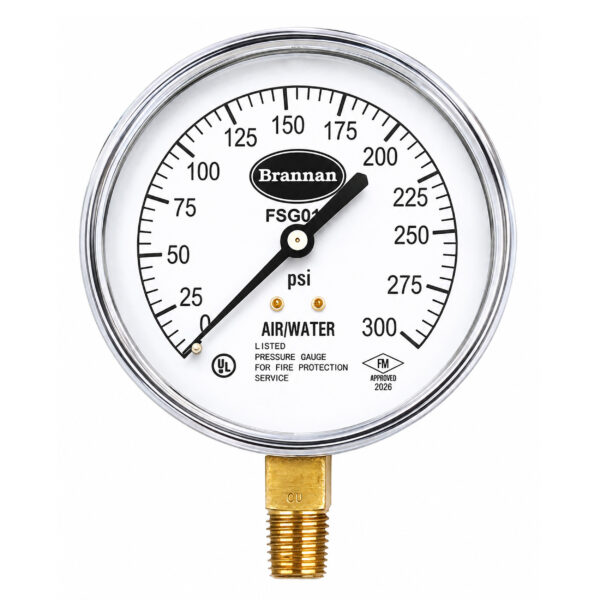

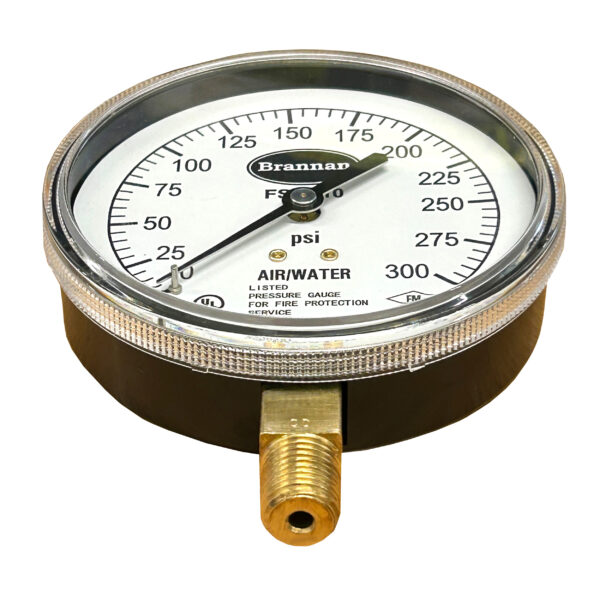

Fire sprinkler pressure gauge
Brannan fire sprinkler pressure gauge designed to provide a quick visual inspection of the water or air pressure within a fire sprinkler system, ensuring it is properly charged and ready to operate. These gauges allow inspectors to confirm that pressure levels are sufficient to control a fire and to identify issues like leaks or closed valves.
Product Features
- Fire sprinkler pressure gauge to provide a quick visual inspection of the water or air pressure within a fire sprinkler system
- Ensures sprinkler is properly charged and ready to operate
- ±3-2-3% (Grade B)
- UL-listed (UL-393)
- Factory Mutual (FM) approved
- Dual scale or single scale
- ASME B40.100 compliant
Specification
- Dial diameter: 3.5" (90mm)
- Ranges: 0 to 80 psi retarded to 250 psi or 0 to 300 psi (other units available on request)
- Thread size: 1/4" NPT
- Case: Black plastic resin
- Connection: Bottom
